Description

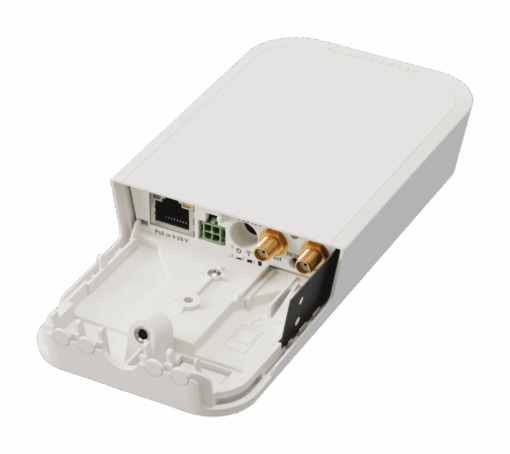

The wAP LR9G kit is a rugged, out-of-the-box LoRa® gateway built into MikroTik’s proven wAP form factor. It features:
• LoRa® 915 MHz support
• Built-in GPS (via MT3337V)
• Improved Rx sensitivity: up to -141 dBm
• 2.4 GHz Wi-Fi (802.11b/g/n dual-chain)
• Passive PoE support and wide voltage input range
• 3 power input options: PoE, automotive, or DC jack
• SMA female connectors for external antenna options
Pair it with any public or private LoRa® network (including The Things Network or The Things Industries) using the preinstalled UDP packet forwarder. Whether you’re deploying smart irrigation in a field or setting up a LoRa® node on a building rooftop – this device is made to withstand the elements and simplify setup.
*) the device has no built in LTE modem, the SIM slot can only be used, if LoRa interface card is removed and replaced by an LTE modem
Specifications
| Details |
| Product code |
RBwAPR-2nD&R11e-LR9G |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| RouterOS license |
4 |
| Operating System |
RouterOS v7 |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 200’000 hours at 25C |
| Tested ambient temperature |
-40°C to 60°C |
Powering
| Details |
| Number of DC inputs |
3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage |
9-28 V |
| Automotive input Voltage |
12-30 V |
| Max power consumption |
7 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
9-28 V |
Wireless specifications
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2 |
| Wireless 2.4 GHz chip model |
QCA9531 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Peripherals
| Details |
| Number of SIM slots |
1 Modem (Mini SIM) |
| MiniPCI-e slots |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
| GPS RF connector type |
uUFL |
Certification & Approvals
| Details |
| Certification |
FCC, IC, EAC |
| IP |
54 |
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
22 |
-96 |
| 11MBit/s |
22 |
-89 |
| 6MBit/s |
20 |
-93 |
| 54MBit/s |
18 |
-74 |
| MCS0 |
20 |
-93 |
| MCS7 |
16 |
-71 |
