Description

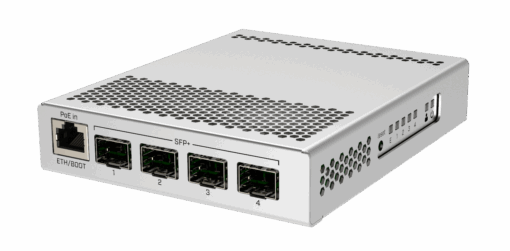

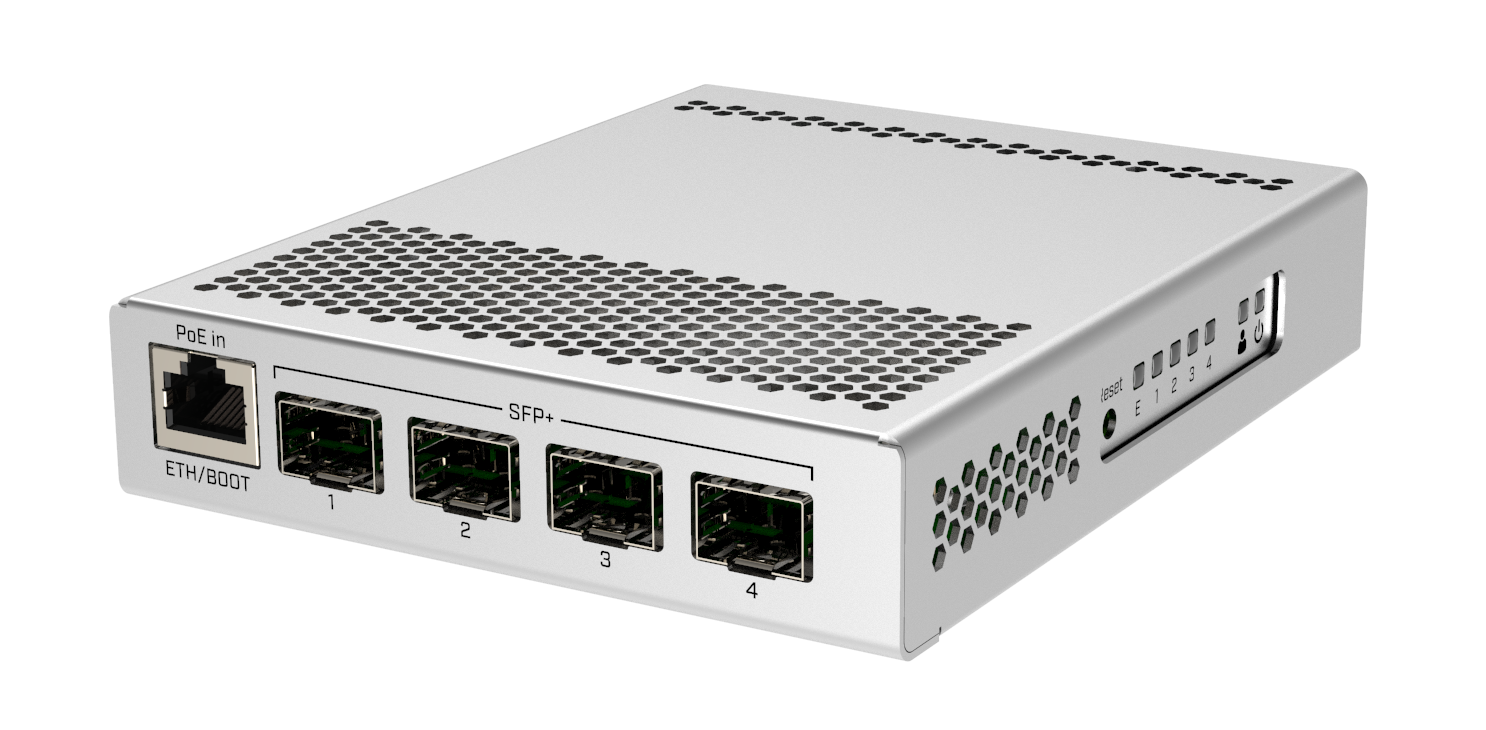

The CRS305 is a compact yet very powerful switch, featuring four SFP+ ports, for up to 10 Gbit per port. The device has a 1 Gbit copper ethernet port for management access or regular traffic forwarding and two DC jacks for power redundancy. The device is a very sleek and compact metallic case without any fans, for silent operation.
The device has a “Dual boot” feature that allows you to choose between two operating systems – RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with a disruptive price, providing the best price/performance on the market.
Specifications
| Details |
| Product code |
CRS305-1G-4S+IN |
| Architecture |
ARM 32bit |
| CPU |
98DX3236 |
| CPU core count |
2 |
| CPU nominal frequency |
800 MHz |
| Switch chip model |
98DX3236 |
| Dimensions |
141 x 115 x 28 mm |
| RouterOS license |
5 |
| Operating System |
RouterOS / SwitchOS |
| Size of RAM |
512 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 200’000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
Powering
| Details |
| Number of DC inputs |
3 (PoE-IN, DC jack) |
| DC jack input Voltage |
12-57 V |
| Max power consumption |
18 W |
| Max power consumption without attachments |
10 W |
| PoE in |
802.3af/at |
| Cooling type |
Passive |
| PoE in input Voltage |
12-57 V |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
1 |
Fiber
Other
| Details |
| CPU temperature monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE, EAC, ROHS |
| IP |
IP20 |
